Micro Bore Extension Sets

ICU Medical has a wide selection of small bore and micro bore extension sets.

Mini-Vol^™ Micro Bore Extension Sets feature low priming volumes that enable small-volume infusions.

Ultra^™ non-PVC, and non-DEHP formulation sets are also available to meet your various clinical needs.

All sets are provided sterile.

Specifications / Ordering Information

Reorder Code	Image	Description	Features	Approx. Priming Volume	Approx. Overall Length	Units / case

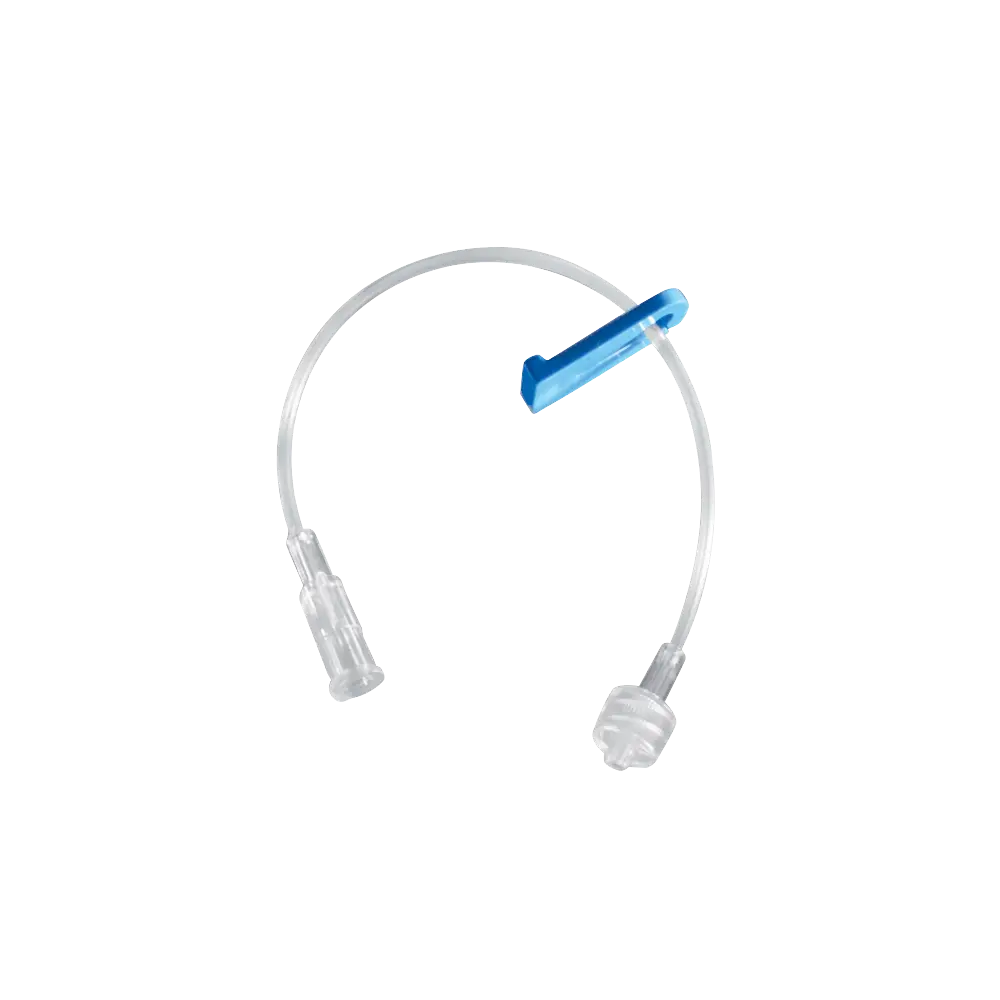

FS116		Micro Bore Extension with 0.2 Micron Filter, Non-Removable Blue Slide Clamp, Male Luer Lock.	Non-DEHP, Not made with natural rubber latex	0.7 mL	60"	25
FS117		Micro Bore Extension with 0.2 Micron Filter, Non-Removable Blue Slide Clamp, "Y" Injection Site, Male Luer Lock.	Non-DEHP, Not made with natural rubber latex	0.5 mL	8.5"	25

Micro Bore Light-Resistant Extension, Male Luer Lock.

Reorder Code	Image	Approx. Overall Length	Approx. Priming Volume	Features	Units / case
537240PS		72" (183 cm)	0.3 mL	Non-DEHP, Not made with natural rubber latex, Polyethylene Lined Tubing	50
