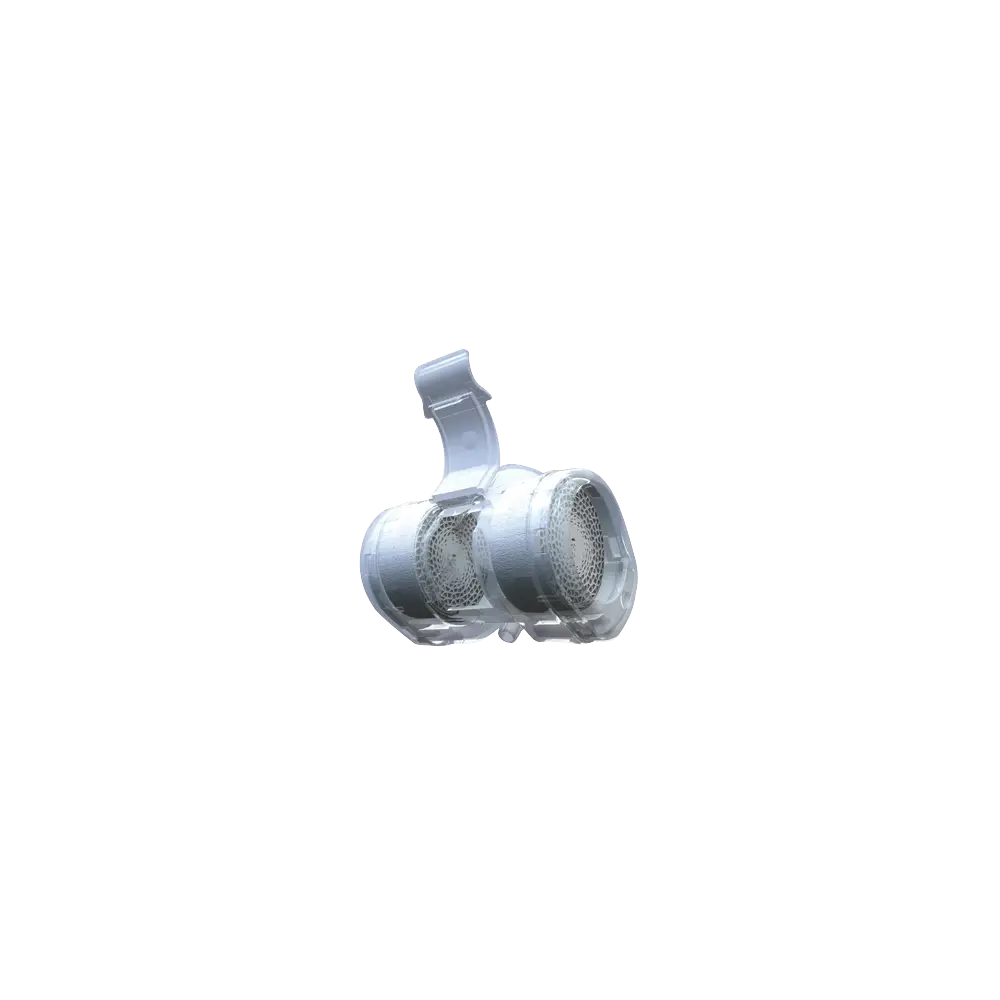

Thermovent T2 Heat and Moisture Exchanger (HME)

Thermovent T2 Heat and Moisture Exchanger (HME)

Thermovent T2 is a sterile, single-use heat and moisture exchanger that provides effective humidification for spontaneously breathing patients whose upper airways are bypassed by a tracheal or tracheostomy tube.

These devices are used to:

  • Treat adult or pediatric patients with a tidal volume of more than 70 mL
  • Reduce heat loss through the bronchopulmonary tree
  • Help to prevent thickened secretions and changes in lung function
  • Supply additional oxygen when required
  • Facilitate the removal of secretions
  • Preserve humidity and minimize damage to tracheal epithelial cells

Product Benefits

  • Simple opening port allows quick and easy access for a suction catheter to aid the removal of secretions.
  • Integrated oxygen port that can provide up to 60% oxygen concentrations to the patient via the simplest of connections.
  • Original Portex Thermovent T paper media provides high-level performance heat and moisture exchange to patient.
  • Smooth, rounded edges aid patient comfort.

Inquire about this product

Specifications / Ordering Information

Portex Thermovent T2 Heat and Moisture Exchanger

Reorder CodeMoisture OutputResistance to FlowDead SpaceWeightInspired Oxygen Concentration (%)
100/570/02225mg 1-1 H2O @ 15 breath/min-1 Tidal volume 500ml0.3 hPa (cmH2O) at gas flow rate 0.5l/sec-1 (30l/min) [0.6cm H2O 1-1 sec-1]
0.7 hPa (cmH2O) at gas flow rate 1.0l/sec-1 (60l/min) [0.7cm H2O 1-1 sec-1]
1.2 hPa (cmH2O) at gas flow rate 1.5l/sec-1 (90l/min) [0.9cm H2O 1-1 sec-1]
11ml7.5g15 breath/min
Tidal volume 500ml
O2 l/min: 1 2 3 4 5 6 7 8 9 10
O2%: 27 33 37 42 45 47 53 54 57 60

Portex­ Thermovent T2 Oxygen Line Accessory

Reorder CodeDetailFeatures
100/575/022The Thermovent T2 Oxygen Line accessory provides the user with flexibility in delivering concentrated, enriched oxygen to a patient with its leak free and secure attachments at each end.Flexible transparent DEHP free PVC tubing
Secure attachment ends for connection to the T2 and oxygen source
2m length nominal tubing
Non sterile
