Thermovent T Heat and Moisture Exchanger (HME) with 15 mm Female Connector

Thermovent T Heat and Moisture Exchanger (HME) with 15 mm Female Connector

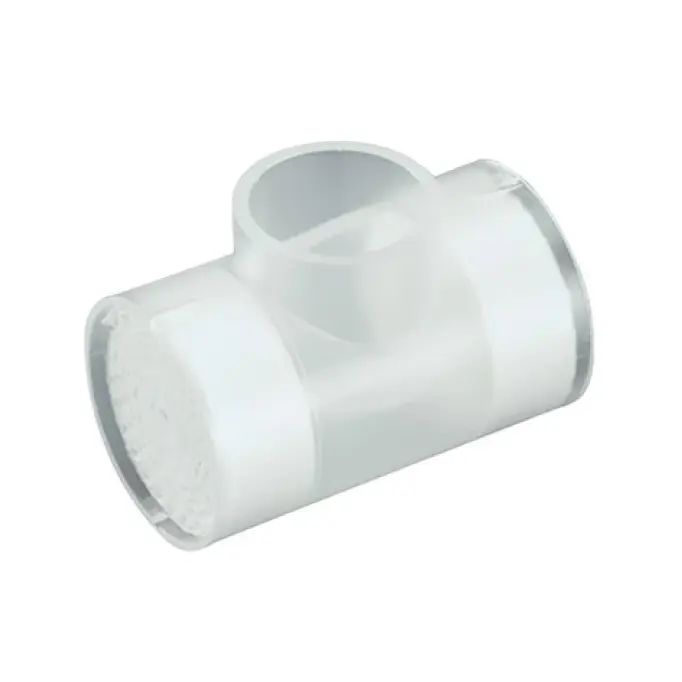

Thermovent T is a sterile, single-use heat and moisture exchanger that provides effective humidification for spontaneously breathing patients whose upper airways are bypassed by a tracheal or tracheostomy tube.

These devices are used to:

  • Treat adult or pediatric patients with a tidal volume of more than 70 mL
  • Reduce heat loss through the bronchopulmonary tree
  • Help to prevent thickened secretions and changes in lung function
  • Supply additional oxygen when required
  • Preserve humidity and minimize damage to tracheal epithelial cells

Ordering Information

Box quantity: 50

Product Benefits

  • Low profile design
  • High performance, double paper element. An efficient heat and moisture exchanger to warm and humidify inspired air, reducing the risk of tube blockage from encrustations, with minimal resistance to flow.
  • Lightweight. Minimizes the drag on the tracheostomy tube.
  • Easily accommodates Thermovent 02 (100/575)
  • Convenient oxygen delivery
  • Full compatibility with breathing systems

Inquire about this product

Specifications / Ordering Information

Heat and Moisture Exchange (HME) for Spontaneously Breathing Patients

Product Code Description Tidal VOL (mL) Resistance (cm H2O at L/min) Moisture Output (mg H2O/ltr) Deadspace (mL) Media Filter Filter Effecient Units Per Case
570016 Thermovent T (Sterile) 1000 0.9 at 30
2.0 at 60
3.5 at 90
10 at 1,000 mL N/A Corrugated Paper N/A N/A 50
570017 Thermovent T (Non Sterile) 1000 0.9 at 30
2.0 at 60
3.5 at 90
10 at 1,000 mL N/A Corrugated Paper N/A N/A 50
Product Code Description Unites Per Case
100/575/010 Oxygen Delivery for HME Thermovent T Thermovent O2 10

Note: Change the device every 24 hours or as needed to prevent accumulation of secretions. Do not add moisture to the filter elements - For use with Portex Tracheostomy Tubes with 15 mm fittings.
