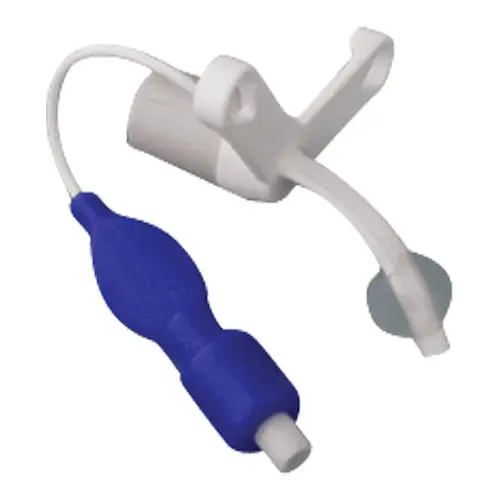

Bivona^™ Aire-Cuf^™ Neonatal and Pediatric Tracheostomy Tubes

Aire-Cuf Neonatal and Pediatric Tracheostomy Tubes provide a traditional cuff management option. Aire-Cuf tracheostomy tubes are ideal for short-term to medium-term ventilator support. Aire-Cuf tubes are flexible and adjustable, with a soft secure cuff.^¹'^²

Neonatal and pediatric tubes are reinforced to give a high level of kink and crush resistance.

Ordering Information

Box quantity: 1

Product Benefits

Silicone remains soft and flexible in the trachea.^¹'^²
Ideal for long-term ventilatory support for patients requiring PEEP.^²

Inquire about this product

Specifications / Ordering Information

Bivona Aire-Cuf Neonatal Tracheostomy Tubes (Straight Neck Flange)

Reorder Code	Tube Size (mm)	Tube I.D. (mm)	Tube O.D. (mm)	Tube Length (mm)	Tube Angle	Cuff Resting Diameter (mm)	Units Per Case
65SN025	2.5	2.5	4.0	30	120°	12.0	1
65SN030	3.0	3.0	4.7	32	120°	14.0	1
65SN035	3.5	3.5	5.3	34	120°	14.0	1
65SN040	4.0	4.0	6.0	36	120°	18.0	1

Bivona Aire-Cuf Neonatal Tracheostomy Tubes ("V" Neck Flange)

Reorder Code	Tube Size (mm)	Tube I.D. (mm)	Tube O.D. (mm)	Tube Length (mm)	Tube Angle	Cuff Resting Diameter (mm)	Units Per Case
65N025	2.5	2.5	4.0	30	120°	12.0	1
65N030	3.0	3.0	4.7	32	120°	14.0	1
65N035	3.5	3.5	5.3	34	120°	14.0	1
65N040	4.0	4.0	6.0	36	120°	18.0	1

Bivona Aire-Cuf Pediatric Tracheostomy Tubes (Straight Neck Flange)

Reorder Code	Tube Size (mm)	Tube I.D. (mm)	Tube O.D. (mm)	Tube Length (mm)	Tube Angle	Cuff Resting Diameter (mm)	Units Per Case
65SP025	2.5	2.5	4.0	38	120°	12.0	1
65SP030	3.0	3.0	4.7	39	120°	14.0	1
65SP035	3.5	3.5	5.3	40	120°	14.0	1
65SP040	4.0	4.0	6.0	41	120°	18.0	1
65SP045	4.5	4.5	6.7	42	120°	18.0	1
65SP050	5.0	5.0	7.3	44	120°	20.0	1
65SP055	5.5	5.5	8.0	46	120°	20.0	1

Bivona Aire-Cuf Pediatric Tracheostomy Tubes ("V" Neck Flange)

Reorder Code	Tube Size (mm)	Tube I.D. (mm)	Tube O.D. (mm)	Tube Length (mm)	Tube Angle	Cuff Resting Diameter (mm)	Units Per Case
65P025	2.5	2.5	4.0	38	120°	12.0	1
65P030	3.0	3.0	4.7	39	120°	14.0	1
65P035	3.5	3.5	5.3	40	120°	14.0	1
65P040	4.0	4.0	6.0	41	120°	18.0	1
65P045	4.5	4.5	6.7	42	120°	18.0	1
65P050	5.0	5.0	7.3	44	120°	20.0	1
65P055	5.5	5.5	8.0	46	120°	20.0	1

Note

Individually packaged with obturator, disconnection wedge, and twill tape.

References

1. Tracheducation. (2023, December 26). Home | Tracheostomy Education. Tracheostomy Education. https://tracheostomyeducation.com/

2. Hess DR, Altobelli NP. Tracheostomy tubes. Respir Care. 2014 Jun;59(6):956-71; discussion 971-3. doi: 10.4187/respcare.02920. PMID: 24891201.
