ICU Medical

SuperCath™ 5 26G

Safety IV Catheter

Peripheral IV catheter with integrated blood-containment technology and fully encapsulated needle protection

SuperCath In-service Video

Help Minimise Blood Exposure While Reducing the Risk of Accidental Needlestick Injury

The SuperCath 5 safety IV catheter combines blood-containment technology with fully encapsulated needle protection to help in your efforts to reduce the risk of needlestick injury and comply with the Occupational Safety and Health Administration (OSHA) Bloodborne Pathogens Standard.1

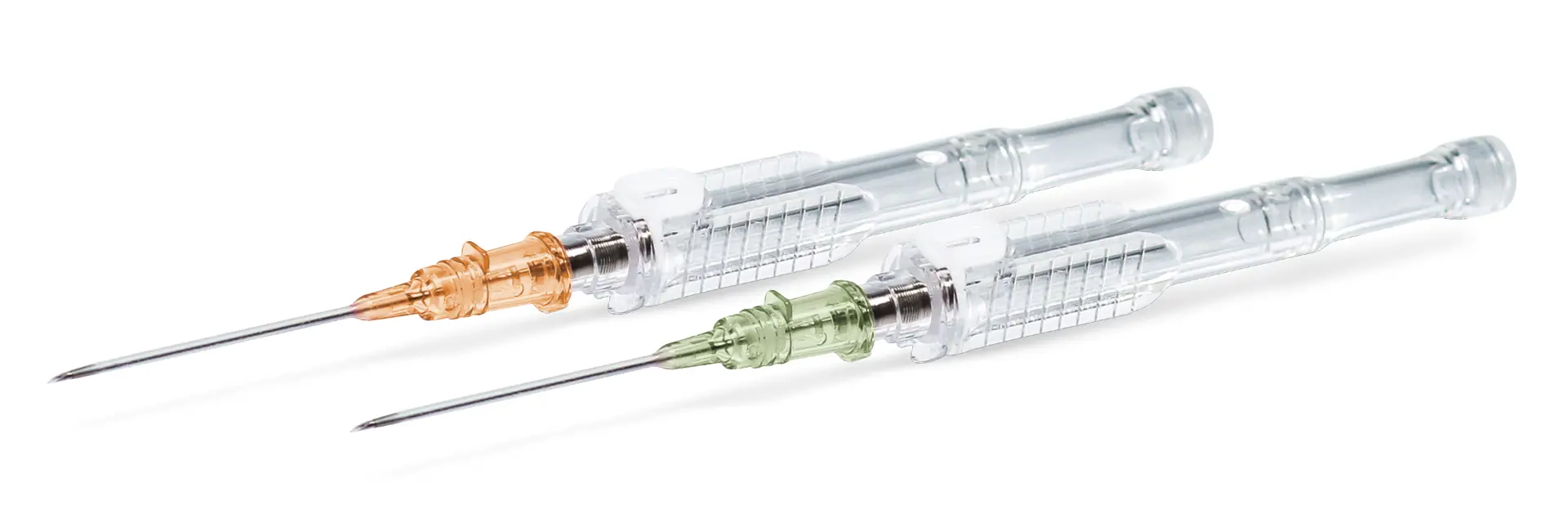

ICU Medicals Supercath Pair of Needles
ICU Medicals Supercath Icons

Avoid blood leakage during catheter insertion and setup with an integrated blood-containment valve.

Avoid accidental needlesticks and needle exposure with push button, spring-loaded needle encapsulation.

Help ensure the catheter is properly in the vessel on the first stick with dual-flash technology.

Access Difficult Vessels with Our 26G Straight Safety Catheter

This needle size and an integrated needle notch is designed to optimise vessel entry in your most delicate patients while complying with clinical recommendations.

Infusion Therapy Standards of Practice Recommendation:
Select the smallest-gauge PIVC that will accommodate the prescribed therapy and patient need.2

Product Details

List No.
Non-Winged		 List No
Winged 		 Gauge  Length
(in) 		 Length
(mm)		 O.D.
(mm) 		 I.D.
(mm) 		 Flow Rate
(mL/min)
SP125-26-14T* SP125-26-14-WT* 26 0.56 14 0.6 0.4 14
SP125-26-19T* SP125-26-19-WT* 26 0.75 19 0.6 0.4 12
SP125-24-14T* SP125-24-14-WT* 24 0.56 14 0.7 0.4 21
SP125-24- 19T*
SP120-24-19T		 SP125-24-19-WT*
SP120-24-19-WT		 24 0.75 19 0.7 0.4 16
SP120-22-25T SP120-22-25-WT 22 1.00 25 0.9 0.6 31
SP120-22-31T SP120-22-31-WT 22 1.25 31 0.9 0.6 28
SP120-20-25T SP120-20-25-WT 20 1.00 25 1.1 0.7 62
SP120-20-31T SP120-20-31-WT 20 1.25 31 1.1 0.7 55
SP120-20-50T SP120-20-50-WT 20 2.00 50 1.1 0.7 52
SP120-18-31T SP120-18-31-WT 18 1.25 31 1.3 0.9 100
SP120-18-50T SP120-18-50-WT 18 2.00 50 1.3 0.9 90
SP120-16-31T
SP125-16-31T*		 SP120-16-31-WT
SP125-16-31-WT*		 16 1.25 31 1.7 1.3 183
SP125-14-31T* SP125-14-31-WT* 14 1.25 31 2.1 1.6 272

*No blood-containment valve.

ALWAYS READ THE LABEL AND FOLLOW THE DIRECTIONS FOR USE.
SuperCath is a trademark of MediKit Co., Ltd.

Product Information

Related Products

Product Enquiry

Please enter your details into the following form.

  1. 1
  2. 2

 Please do not enter any patient data

References

  1. Occupational Safety and Health Administration (OSHA). Bloodborne Pathogens Standard. 29 CFR 1910.1030.
  2. Infusion Nurses Society. Infusion nursing standards of practice. J Infus Nurs. 2021, 8th Edition
