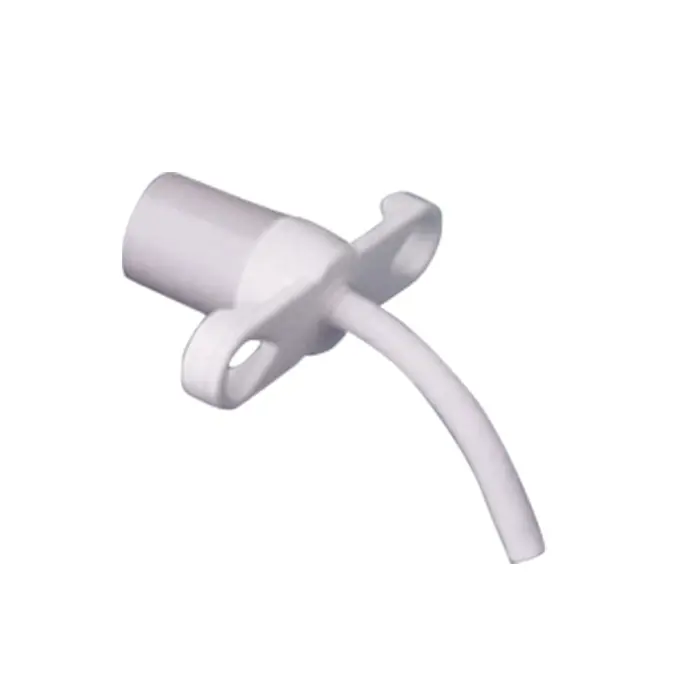

Bivona^™ Uncuffed Neonatal and Pediatric Tracheostomy Tubes

Providing Comfort and Ease-of-Use

The Bivona Uncuffed Neonatal and Pediatric Tracheostomy Tube is designed to provide maximum patient comfort through its soft and flexible silicone construction. The silicone tube material is hydrophobic and hypoallergenic, allowing for a tube that is tissue-friendly and easy to clean.^¹'^²

Ideal for the pediatric and neonatal patients where voice is desired and airway leakage is not a problem. ^¹'^³

The silicone material of the tube remains soft and flexible in the trachea, allowing greater range of mobility than tubes of more rigid material.^¹'^²

Bivona neonatal and pediatric tubes are reprocessable up to five times.

Product Benefits

The Bivona Uncuffed Neonatal and Pediatric Tracheostomy Tubes are designed to provide maximum comfort:

Soft and flexible silicone construction free of DHEP, latex, and plasticizers^¹'^²
Straight and V neck flange options for improved fit
Cuffless design to aid weaning and speaking^³
Wire-reinforced shaft to help prevent kinking

Inquire about this product

Specifications / Ordering Information

Bivona Uncuffed Neonatal Tracheostomy Tubes (Straight Neck Flange)

Reorder Code	Tube Size (mm)	Tube I.D. (mm)	Tube O.D. (mm)	Tube Length (mm)	Tube Angle	Cuff Resting Diameter (mm)	Units Per Case
60SN025	2.5	2.5	4.0	30.0	120°	N/A	1
60SN030	3.0	3.0	4.7	32.0	120°	N/A	1
60SN035	3.5	3.5	5.3	34.0	120°	N/A	1
60SN040	4.0	4.0	6.0	36.0	120°	N/A	1

Bivona Uncuffed Neonatal Tracheostomy Tubes ("V" Neck Flange)

Reorder Code	Tube Size (mm)	Tube I.D. (mm)	Tube O.D. (mm)	Tube Length (mm)	Tube Angle	Cuff Resting Diameter (mm)	Units Per Case
60N025	2.5	2.5	4.0	30.0	120°	N/A	1
60N030	3.0	3.0	4.7	32.0	120°	N/A	1
60N035	3.5	3.5	5.3	34.0	120°	N/A	1
60N040	4.0	4.0	6.0	36.0	120°	N/A	1

Bivona Uncuffed Pediatric Tracheostomy Tubes (Straight Neck Flange)

Reorder Code	Tube Size (mm)	Tube I.D. (mm)	Tube O.D. (mm)	Tube Length (mm)	Tube Angle	Cuff Resting Diameter (mm)	Units Per Case
60SP025	2.5	2.5	4.0	38.0	120°	N/A	1
60SP030	3.0	3.0	4.7	39.0	120°	N/A	1
60SP035	3.5	3.5	5.3	40.0	120°	N/A	1
60SP040	4.0	4.0	6.0	41.0	120°	N/A	1
60SP045	4.5	4.5	6.7	42.0	120°	N/A	1
60SP050	5.0	5.0	7.3	44.0	120°	N/A	1
60SP055	5.5	5.5	8.0	46.0	120°	N/A	1

Bivona Uncuffed Pediatric Tracheostomy Tubes ("V" Neck Flange)

Reorder Code	Tube Size (mm)	Tube I.D. (mm)	Tube O.D. (mm)	Tube Length (mm)	Tube Angle	Cuff Resting Diameter (mm)	Units Per Case
60P025	2.5	2.5	4.0	38.0	120°	N/A	1
60P030	3.0	3.0	4.7	39.0	120°	N/A	1
60P035	3.5	3.5	5.3	40.0	120°	N/A	1
60P040	4.0	4.0	6.0	41.0	120°	N/A	1
60P045	4.5	4.5	6.7	42.0	120°	N/A	1
60P050	5.0	5.0	7.3	44.0	120°	N/A	1
60P055	5.5	5.5	8.0	46.0	120°	N/A	1

Each tube comes individually packaged with obturator, disconnection wedge, and twill tape.

References

1. Hess DR, Altobelli NP. Tracheostomy tubes. Respir Care. 2014 Jun;59(6):956-71; discussion 971-3. doi: 10.4187/respcare.02920. PMID: 24891201.

2. Tracheducation. (2023, December 26). Home | Tracheostomy Education. Tracheostomy Education. https://tracheostomyeducation.com/

3. McCracken J, Leasa D. Trach tubes designed to maximize safety may increase risk to ventilated patients. Crit Care. 2010;14(6):1008. doi: 10.1186/cc9306. Epub 2010 Dec 8. PMID: 21144013; PMCID: PMC3220018.

Related downloads

Brochure
Bivona Silicone Tracheostomy Tubes Product Catalog
